SHR-100A Mixer

Electric apparatus

• A. Main apparatus adopt Suzhou Siemens, RKC temperature controller (Japan)
• B. Main motor adopts time relay, max time: 15 minutes.
• C. Electric box separately made and adopts easy dust-proof device

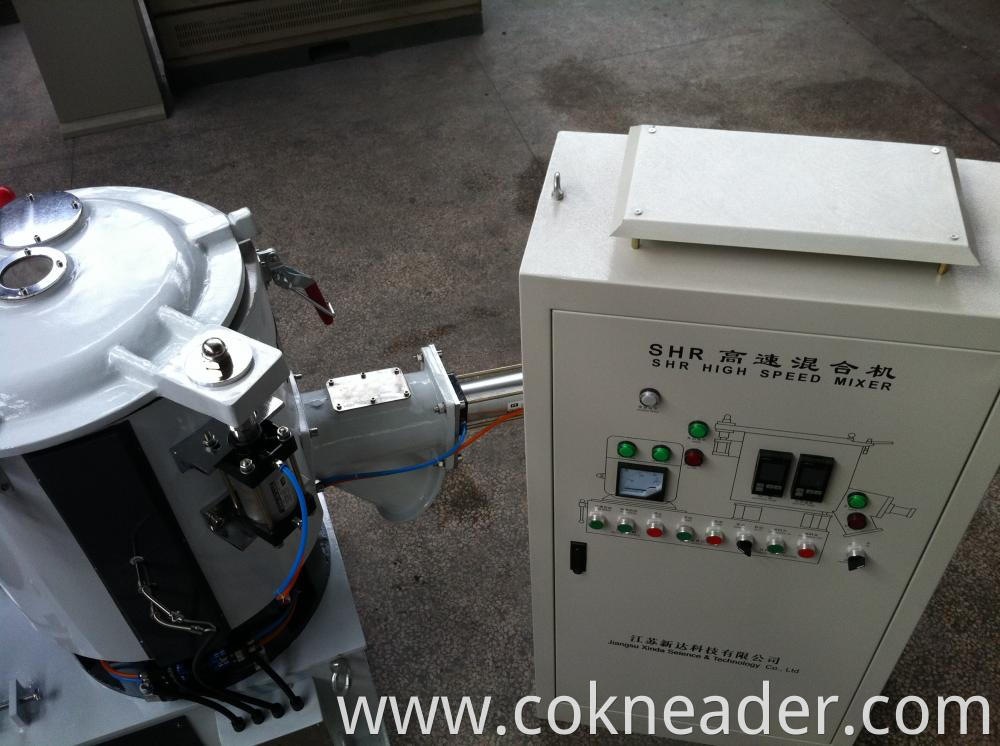

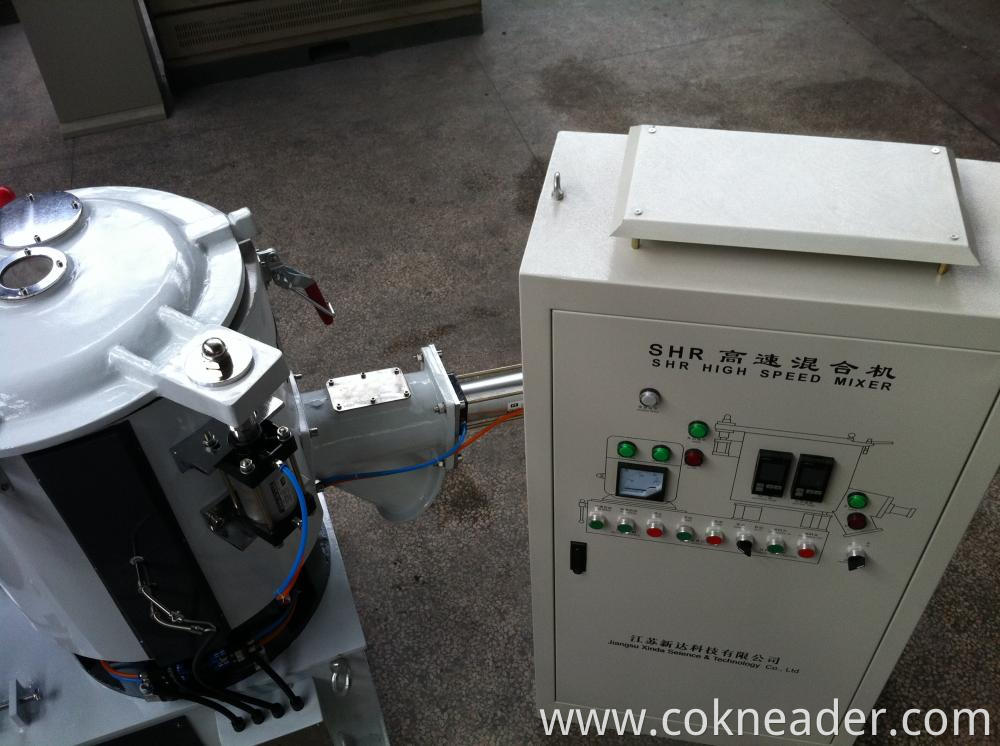

• D. Electric control panel: on panel: electric lights, running switch, auto running switch (with time recorder); in panel: residual current operated protective devices, pneumatic switch, relay, fuse terminal, etc.
• F. Air panel: on panel: Pneumatic valve, terminal table; others: regulator, manual ball valve

Safety device

• A. On the main motor equipped with touch switch and this kind of design ensures that when the cover closes then the stirring wing can rotate.
• B. On the discharging valve there is a touch switch and this kind of design ensures that when the cover closes then the stirring wing can rotate.

Other parts (include bearing, belt, feeding hopper and other parts)

• 1. Name: High speed mixer
• 2. Quantity: 1 set
• 3. Model: SHR-100A

1) Stirring tank

• A. Total volume: 100L, Effective volume 75L, feeding quantity one time: 30Kg
• B. Shape: Round pallet bottom
• C. Inner barrel: SUS304, δ＝6mm, 250＃ polishing
• D. Outer barrel: Q235-A, δ＝2mm
• E. Barrel top circle flange: SUS304, δ＝10mm, 250＃ polishing

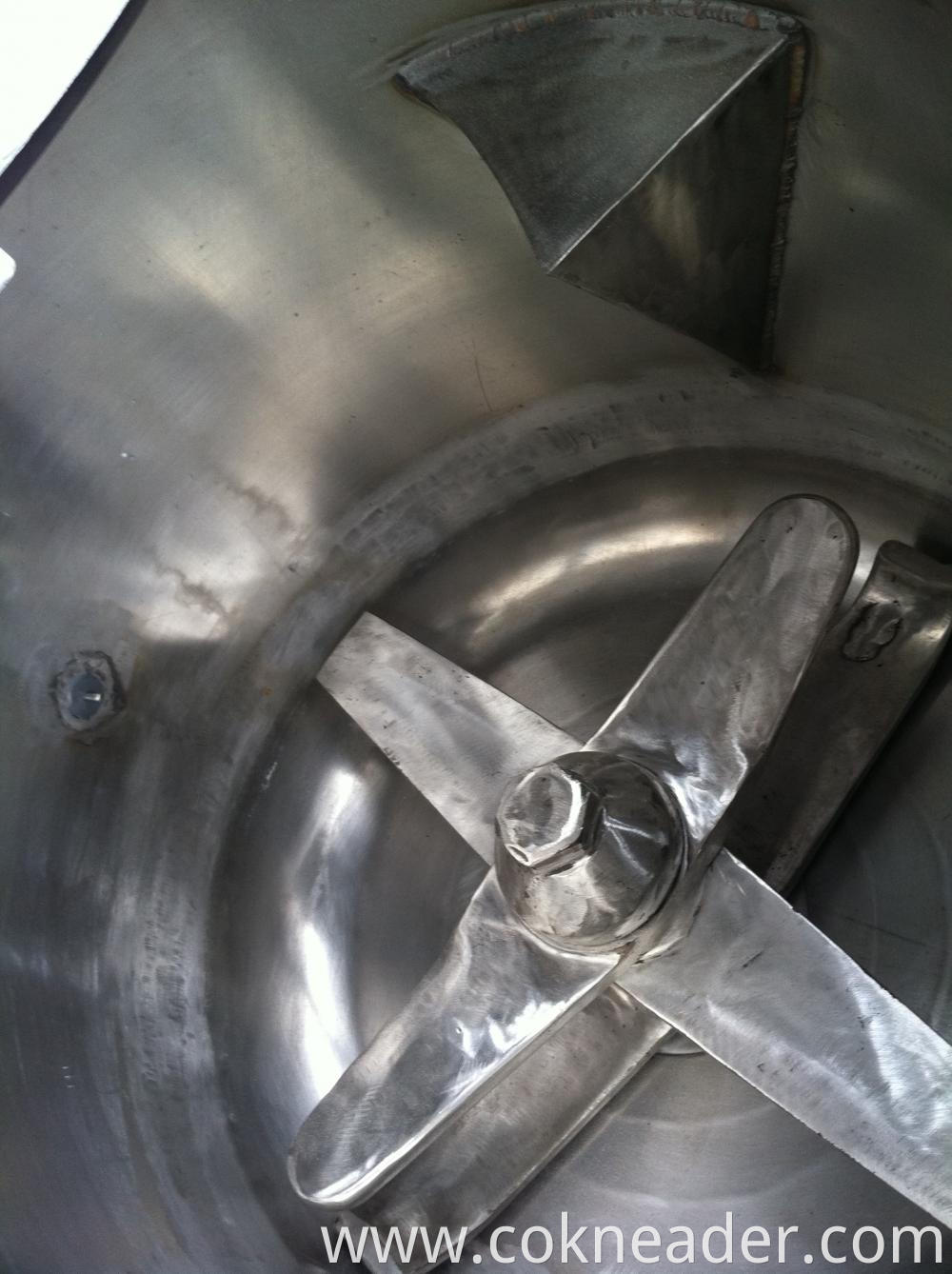

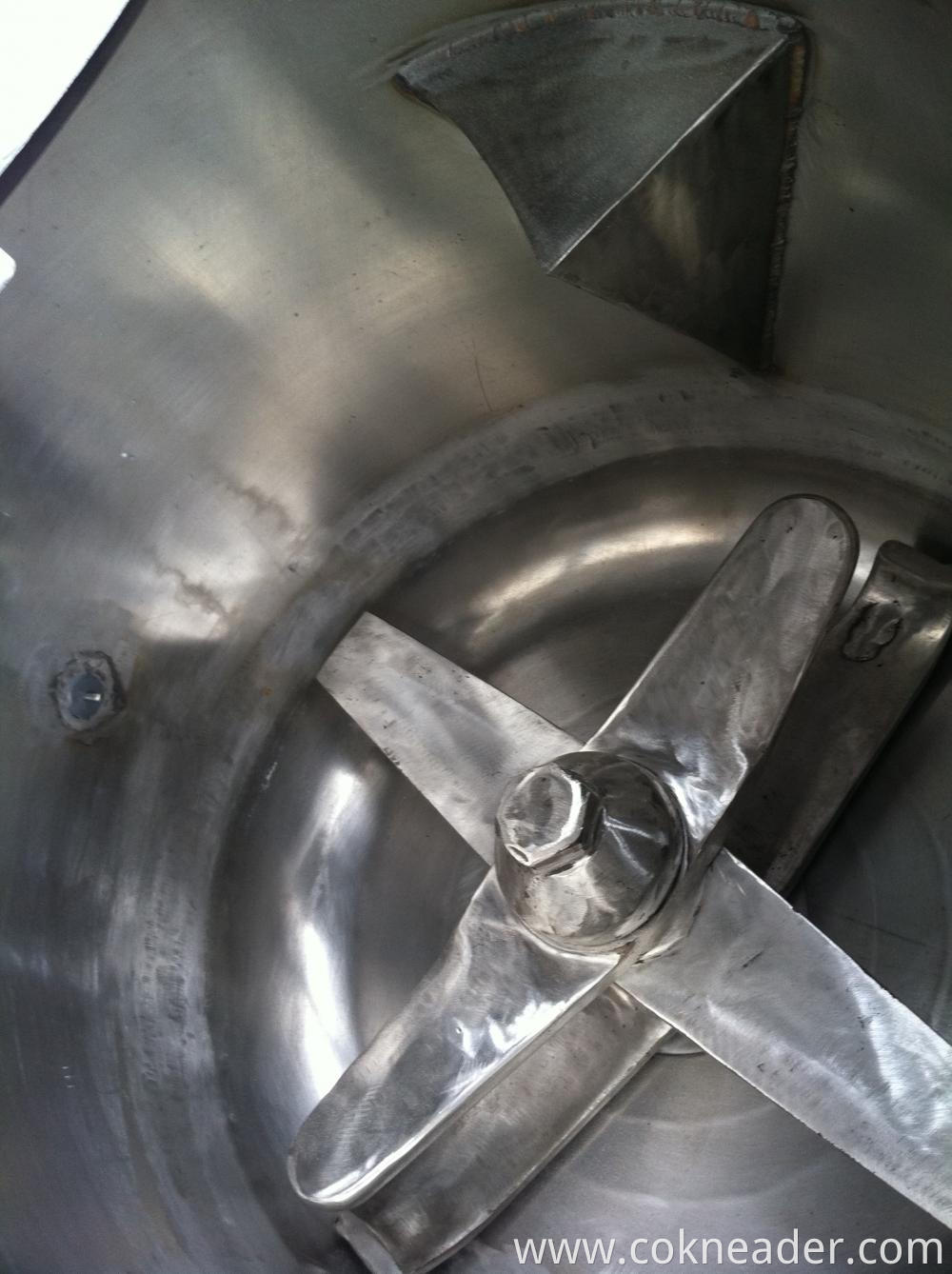

2) Stirring wing

• A. Material: SUS304, 250＃ polishing
• B. Stirring wing speed: 650/1300rpm
• C. Stirring wing construction: made from top side wing, middle side wing and bottom side wing; Blade made of SUS304

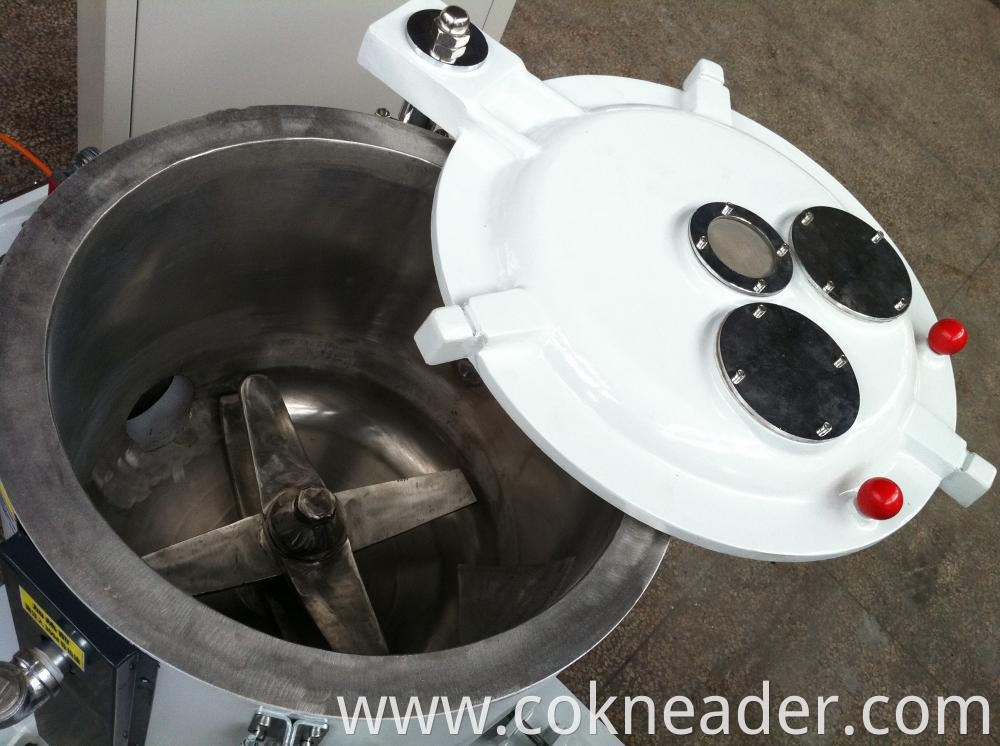

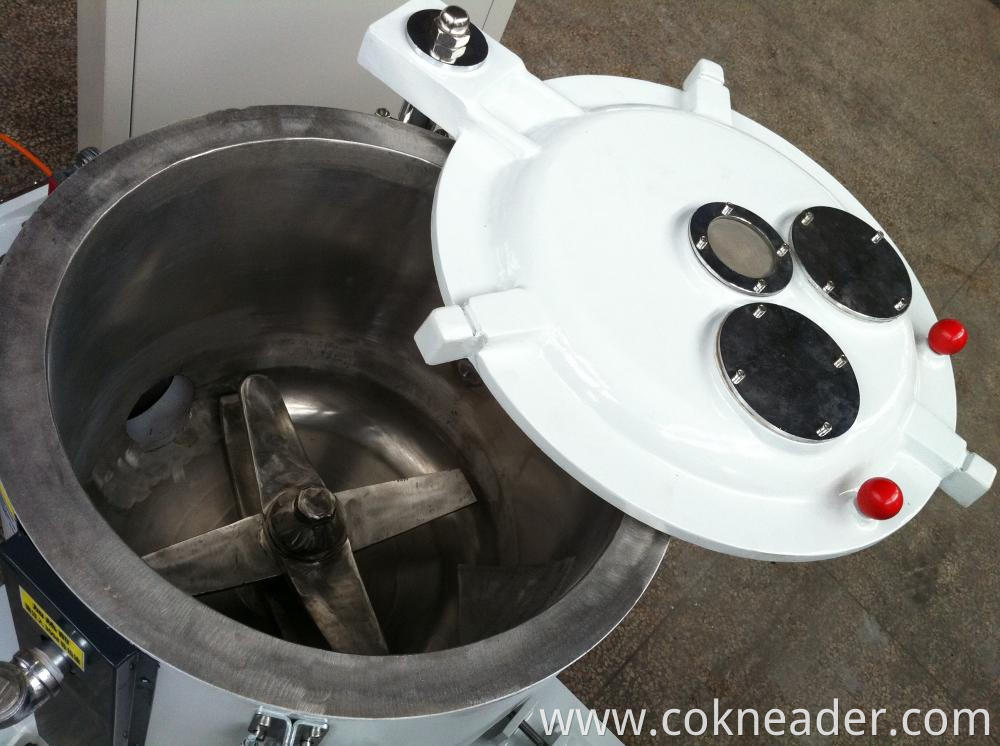

3) Barrel cover and lifting parts

• A. Barrel cover material: ZL102, inner surface 200＃ polishing
• B. Sealing: cover sealing parts adopt two lines white silica rubber sealing
• C. On the barrel cover equipped with feeding mouth and vent

4) Foundation

• A. Construction: fixable stirring tank and motor and also equipped with belt tighten device
• B. Panel material: Made of Q235-A, δ＝10mm
• C. Pot bottom material: made of HT200
• D. Frame material: Q235-A
• F. Surface was sprayed paint

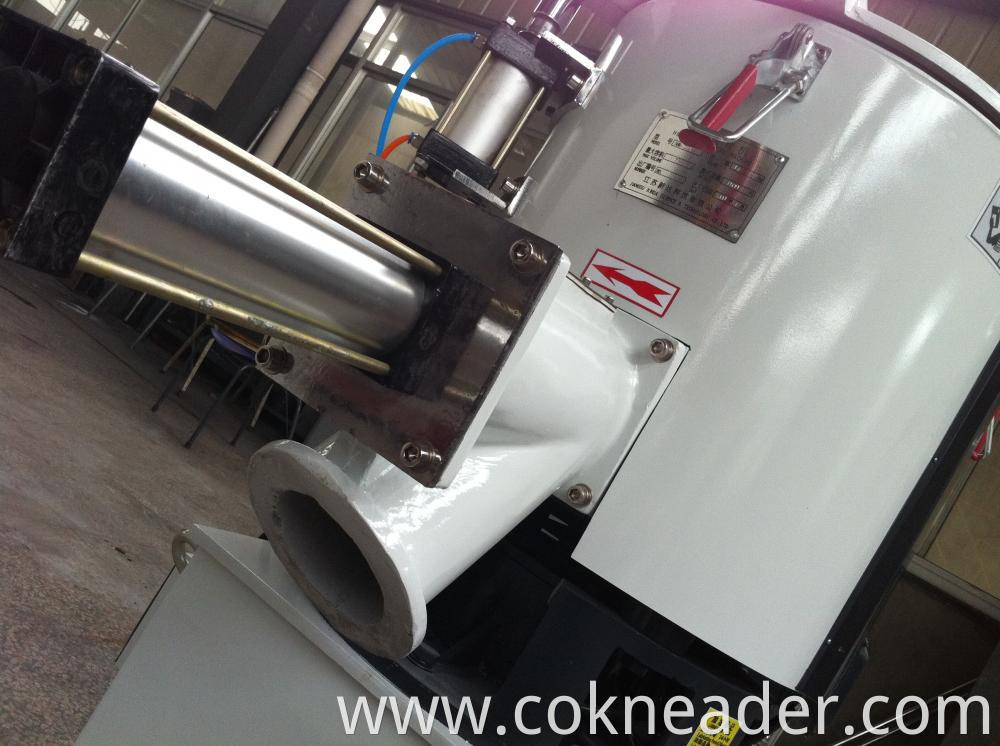

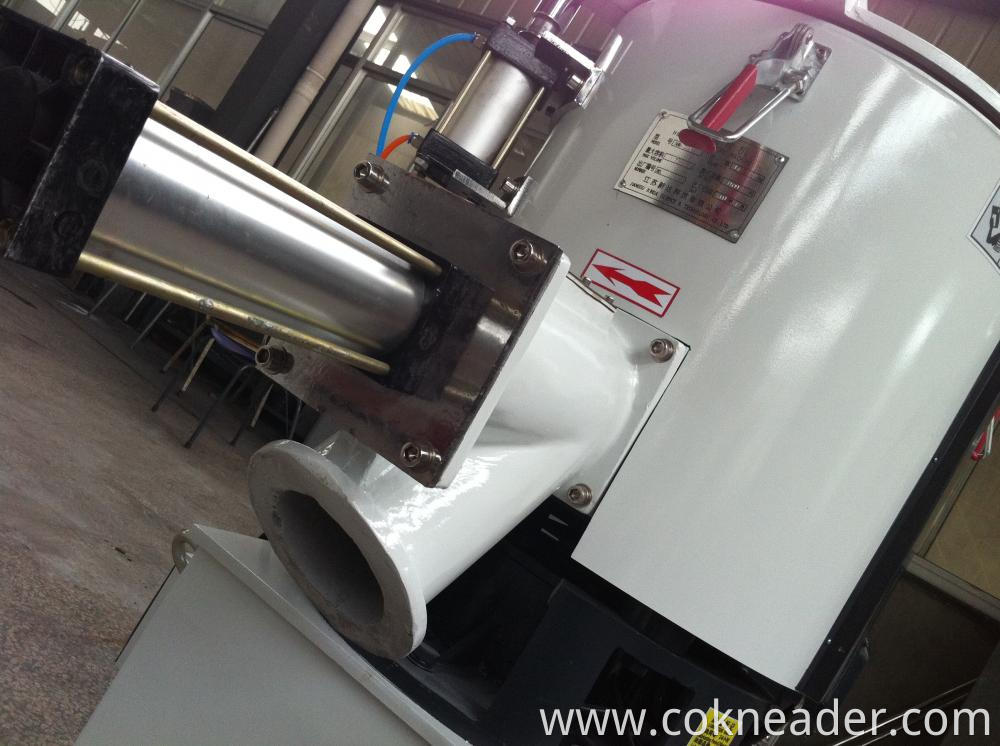

5) Material discharging device

• A. Material: Made of ZL102, 200＃ polishing
• B. Construction: Pneumatically open, equipped with observing hole and air blowing hole, valve limit opening and so on
• C. Discharging cover material: ZL102
• D. Discharging valve material: SUS304

6) Motor

• A. Model: YD180L-8/4V1 (AC 380V, 50HZ), AC motor
• B. Power: 14/22KW
• C. Rotary speed: 740/1480rpm

7) Bearing sealing parts

• A. Oil sealing + labyrinth seal ring
• B. Oil sealing made of natural rubber
• C. Air blows from seal ring to stirring tank. This kind of design stops the material getting into the sealing parts
• D. Bearing adopts NSK
