Basic Info
Model No.: SHJ
Brand: XINDA
Raw Material: PVC
Screw: Double-Screw
Inverter: Inverter
Electromagnetic Heater: Electromagnetic Heater
Automation: Automatic
Computerized: Computerized
Customized: Customized
Certification: GMP
Condition: New
Additional Info
Packaging: Wood box or pallets
Productivity: 1500KG/H
Transportation: Ocean
Place of Origin: CHINA
Supply Ability: 50pcs per month
Certificate: ISO90001,IQNET
HS Code: 84772010
Port: SHANGHAI,SHANGHAI,SHANGHAI
Payment Type: L/C,T/T,D/P,Western Union
Incoterm: FOB,CIF,EXW
Product Description

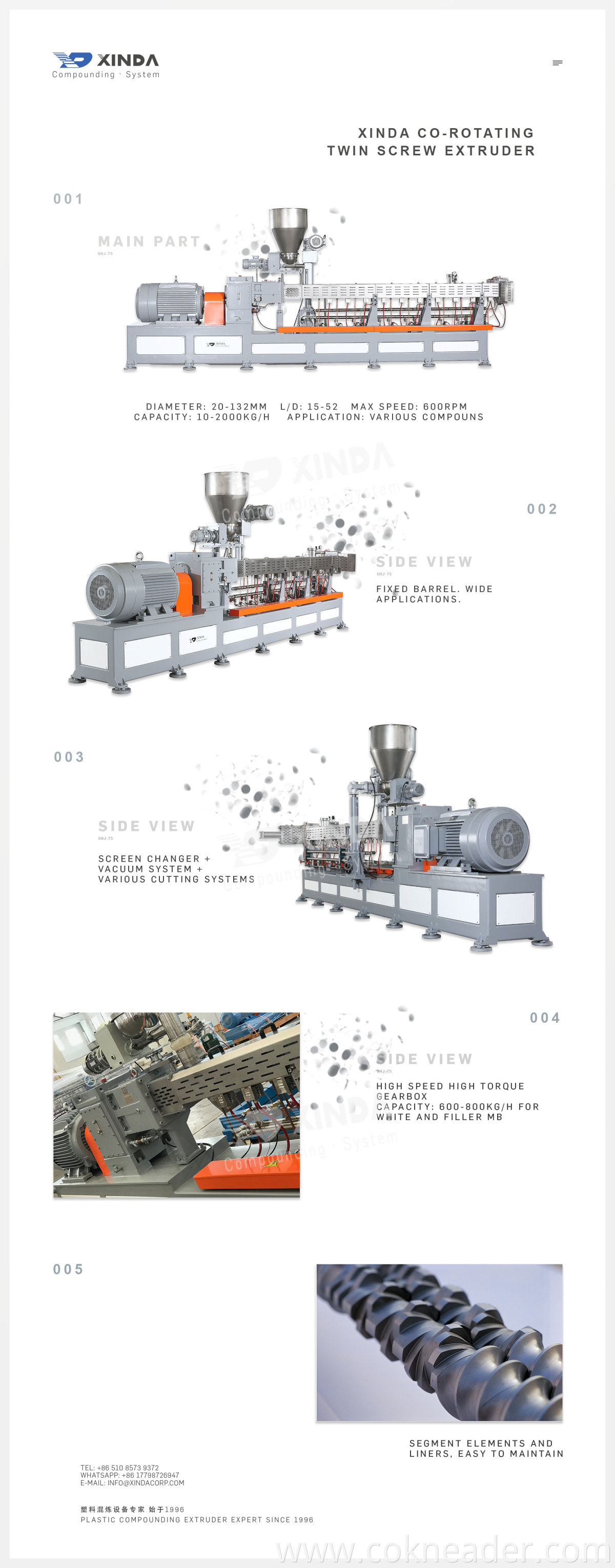

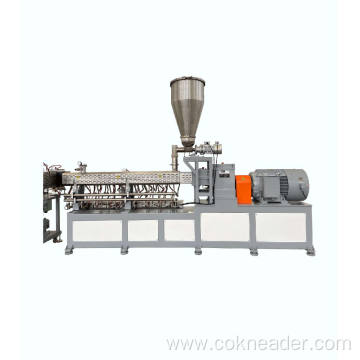

The XINDA SHJ twin screw series are built on a modular system. The major advantage of this modular design is the versatile configurations. Processing tasks can be optimally accomplished with only a few barrel and screw variations.
| Model | SHJ-20 | SHJ-35 | SHJ-50 | SHJ-65 | SHJ-75 | SHJ-95 |
|---|---|---|---|---|---|---|
| Screw Diameter (MM) | 21.7 | 35.6 | 50.2 | 62.4 | 71 | 91 |
| Central Distance | 18 | 30 | 42 | 52 | 60 | 78 |
| Length Diameter Ratio | 28-52 | 28-52 | 28-52 | 28-52 | 28-52 | 28-52 |
| Main Motor Power (KW) | 4-5.5 | 22-45 | 75-110 | 110-185 | 160-280 | 180-355 |
| Max. Screw Speed (RPM) | 600 | 600 | 600 | 600 | 600 | 600 |
| Output Torque per Shaft (N.m) | 32-43 | 175-358 | 579-875 | 875-1472 | 1273-2228 | 1432-2825 |
| Reference Output (KG/HOUR) | 5-20 | 20-80 | 80-200 | 150-350 | 300-600 | 700-1500 |
| Model | C-SHJ-35 | C-SHJ-50 | C-SHJ-65 | C-SHJ-75 | C-SHJ-95 |
|---|---|---|---|---|---|
| Screw Diameter (MM) | 35.6 | 50.5 | 62.4 | 71 | 91 |
| Central Distance | 30 | 42 | 52 | 60 | 78 |
| Length Diameter Ratio | 28-52 | 28-52 | 28-52 | 28-52 | 28-52 |
| Main Motor Power (KW) | 22-45 | 75-132 | 110-250 | 160-355 | 315-650 |
| Max. Screw Speed (RPM) | 800 | 800 | 800 | 800 | 800 |
| Output Torque per Shaft (N.m) | 131-269 | 448-788 | 657-1492 | 955-2119 | 1880-3880 |
| Reference Output (KG/HOUR) | 150-300 | 200-500 | 400-800 | 500-1000 | 800-2000 |
Product Categories : Co Rotating Twin Screw Extruder > Fixed Barrel Twin Screw Extruder
