Home > Products > Co Rotating Twin Screw Extruder > Clamshell Twin Screw Extruder > Co-rotating Twin Screw Extruder for Pellet Polymer Compounding

View the big picture

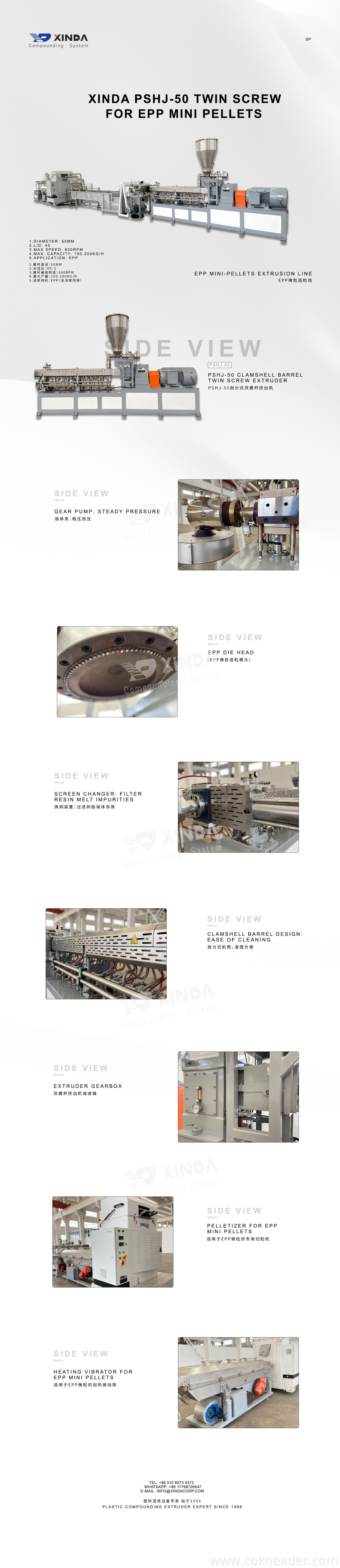

Co-rotating Twin Screw Extruder for Pellet Polymer Compounding

Name: Co-rotating Twin Screw Extruder for Pellet Polymer Compounding
Brand: JIANGSU XINDA TECH LIMITED
Rating: 5.0 (28 reviews)

Payment Type:	L/C,T/T,D/P,Western Union
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces

Contact Now

 Chat Now
Share to:

Basic Info

Model No.: PSHJ

Brand: XINDA

Raw Material: PVC

Screw: Double-Screw

Inverter: Inverter

Electromagnetic Heater: Electromagnetic Heater

Automation: Automatic

Computerized: Computerized

Customized: Customized

Certification: GMP

Condition: New

Additional Info

Packaging: Wood box or pallets

Productivity: 1500KG/H

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 50pcs per month

Certificate: ISO90001,IQNET

HS Code: 84772010

Port: SHANGHAI,SHANGHAI,SHANGHAI

Payment Type: L/C,T/T,D/P,Western Union

Incoterm: FOB,CIF,EXW

Product Description

Pellet Polymer compounding Co-rotating Twin Screw Extruder
Pellet Polymer compounding Co-rotating Twin Screw Extruder

The barrel of the twin screw extruder can be opened in minutes. This makes product changeover, maintenance and research fast and easy. Both screws and barrels are designed using the building block principle. The screw configuration, barrel setup, feeding and venting, screen changing, way of pelletizing and process requirements, in consideration of the machine's versatility in other general applications.

Application:

Various plastic inorganic filler, polymer blending (plastic alloy), plastic coloring, etc
Various plastic inorganic filler, polymer blending (plastic alloy), plastic coloring, etc
Various engineering plastic reinforcement of glass fiber, flame-retardant pellets
Various antibacterial, insulated, toughening materials for specific uses
Light/biological degradable film materials, starch degradable plastics and multi-functional anti-fog film materials, etc
Specific material for automobiles and household appliance and cable materials, etc
Thermoplastic elastomers, such as TPR, TPE, and SBS, etc
Regenerate pellets for PVC airproof pieces, thermo-soluble glue, etc

Model	PSHJ-20	PSHJ-35	PSHJ-50	PSHJ-65	PSHJ-75	PSHJ-127
Screw Diameter: MM	21.7	35.6	50.5	62.4	71	126
Central Distance	18	30	42	52	60	102
Length Diameter Ratio	28-52	28-52	28-52	28-52	28-52	28-52
Main Motor Power	4-5.5	22-45	75-110	110-185	160-280	90-160
Max.Screw Speed: RPM	600	600	600	600	600	600
Output Torque per Shaft：N.m	32-43	175-358	597-875	875-1472	1273-2228	850-1528
Reference Output: KG/HOUR	5-20	20-80	80-200	150-350	300-600	800-1500

Model	C-PSHJ-35	C-PSHJ-50	C-PSHJ-65	C-PSHJ-75	C-PSHJ-127
Screw Diameter: MM	35.6	50.5	62.4	71	126
Central Distance	30	42	52	60	102
Length Diameter Ratio	28-52	28-52	28-52	28-52	13-18
Main Motor Power	22-45	75-132	110-250	160-355	90-160
Max.Screw Speed: RPM	800	800	800	800	500
Output Torque per Shaft：N.m	131-269	448-788	657-1492	955-2119	850-1528
Reference Output: KG/HOUR	150-300	200-500	400-800	500-100	800-1500

Product Description:

Product Categories : Co Rotating Twin Screw Extruder > Clamshell Twin Screw Extruder
