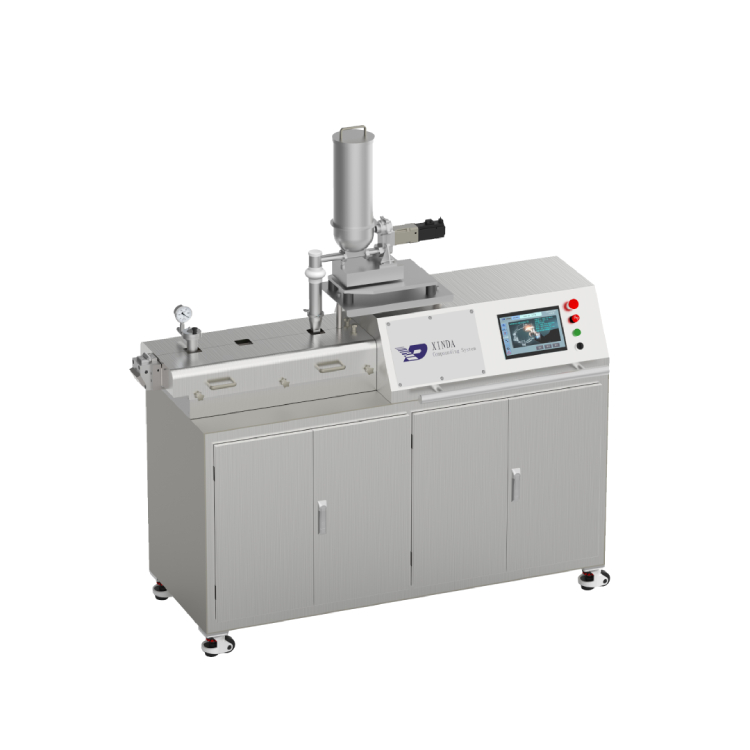

Product Description for Hot Melt Twin Screw Extruder

Hot melt extrusion (HME) and twin-screw granulation (TSG) application kits are available, which are designed according to the requirements of commercial manufacturing processes. The twin-screw extruder covers a small area, including all electronic equipment and control devices of downstream equipment in the extruder shell. The instrument can be moved by one person, and the hinged and split barrel design is convenient for cleaning or changing the configuration. No special handling equipment is required to disassemble the can body. The inspection to ensure that the instrument meets the "obvious cleaning" standard can be easily completed. The media and power supply are connected with the quick connector to ensure that the device can be easily installed or removed for cleaning after production and operation.

Compact, seamless shell design ensures compliance with GMP requirements. All parts in contact with the product can be easily disassembled for external cleaning and inspection. Since the barrel can be opened in a few minutes, the efficiency of equipment cleaning and maintenance has been greatly improved, and the product conversion and new product research and development have been more convenient.

Comprehensive and industry-standard control and operation software allows plug and play functions of upstream and downstream process equipment. It provides user and recipe management procedures and audit trail functions.

Equipment Parameters for How to Choose the Twin Screw Extruder

• Screw diameter: 11mm, 20mm, 35mm
• Length-diameter ratio of screw: 15/1~40/1 optional
• Screw speed: 1~600rpm, higher speed can be configured as required
• Pressure: 250 bar and above
• Torque: 50~180N·m
• Power supply: 230V, 400V, can be customized as required.
• Heating belt: 230°C (400°C optional)
• Material: medical grade 316L stainless steel or higher, electrolytic polishing

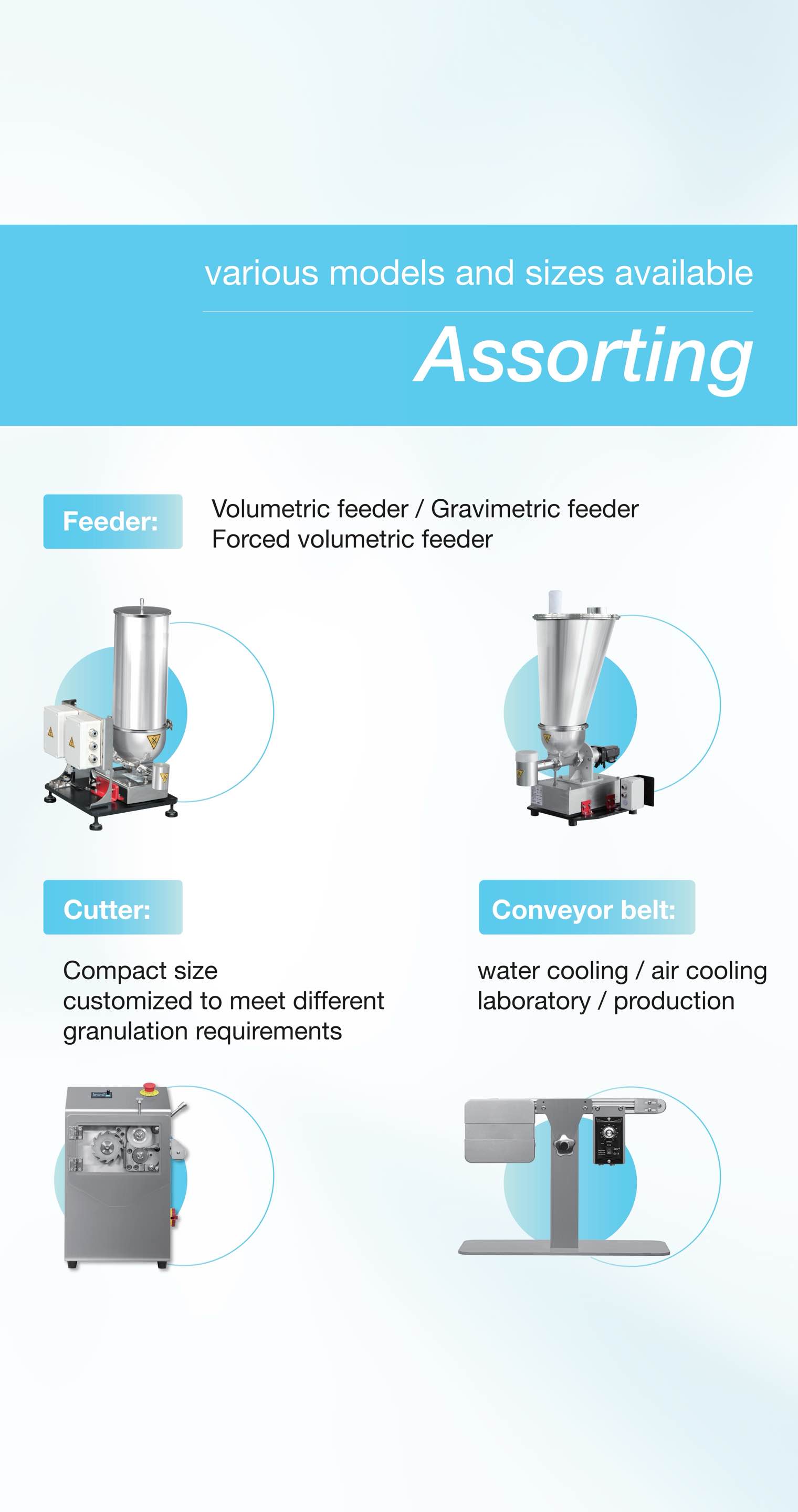

Optional for Other Parts of the Twin Screw Extruder for Pharma

• Feeder: weighing type, weight-loss type, forced type, etc. are available in different models and sizes according to the configuration of the extruder
• Cutter: air-cooled mold surface granulation, water-cooled granulation, cooling conveyor belt granulation, various models and sizes available
• Granulator: roller granulator, high-speed pill making machine, multiple shape tablet granulation optional
• Tablet press: continuous tablet press
• Conveyor belt: water cooling/air cooling, laboratory/production multiple models optional
• Isolation box: can be used to place 16mm, 20mm series extruders and their accessories
