Home > Products > Single Screw Extruder > PE/PP Recycling Pelletizing Line

View the big picture

PE/PP Recycling Pelletizing Line

Name: PE/PP Recycling Pelletizing Line
Brand: JIANGSU XINDA TECH LIMITED
Rating: 4.9 (37 reviews)

Contact Now

 Chat Now
Share to:

Basic Info

Model No.: SJ-150

Brand: XINDA

Certification: CE

Automation: Semi-Automatic

Screw: Single-Screw

Additional Info

Packaging: wooden+pp film packing

Productivity: 500kg/h

Transportation: Ocean

Place of Origin: China

Certificate: CE

HS Code: 84772010

Port: Shanghai

Product Description

PE/PP recycling pelltizing line

SJ-150

Technical Parameters:

1. L/D：32:1
2. Screw diameter：φ150
3. DC Motor power：132kW
4. Rotary speed：10~120rpm
5. Cooling method：Forced air cooling
6. Lubrication method：Oil dipping
7. Heating method：Electric heater
8. Pelletizing method：Surface rubbing granulation
9. Control section：8 sections (including die head)

Agglomerator:

1. DC Motor power：110kW
2. Temperature control：Section 1
3. Cooling method：Air cooling
4. Rotary cutter：4 groups
5. Fixed cutter：8 groups

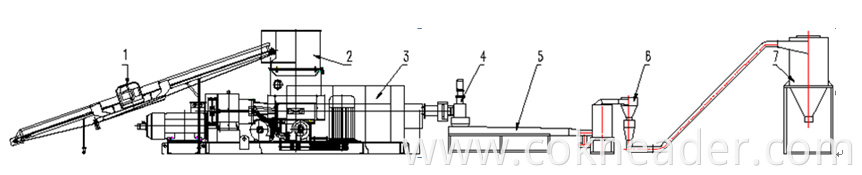

Production Line Layout Plan:

Main Equipment List:

1. Screw feeder
2. Agglomerator
3. SJ-150/32 Single-screw Extruder
4. Vertical Water-ring Device
5. Chute
6. Vertical De-watering Machine
7. Silo Storage
