Home > Products > Co-kneader > SJW Serial Co-kneader > Rubber Extruder Machine

View the big picture

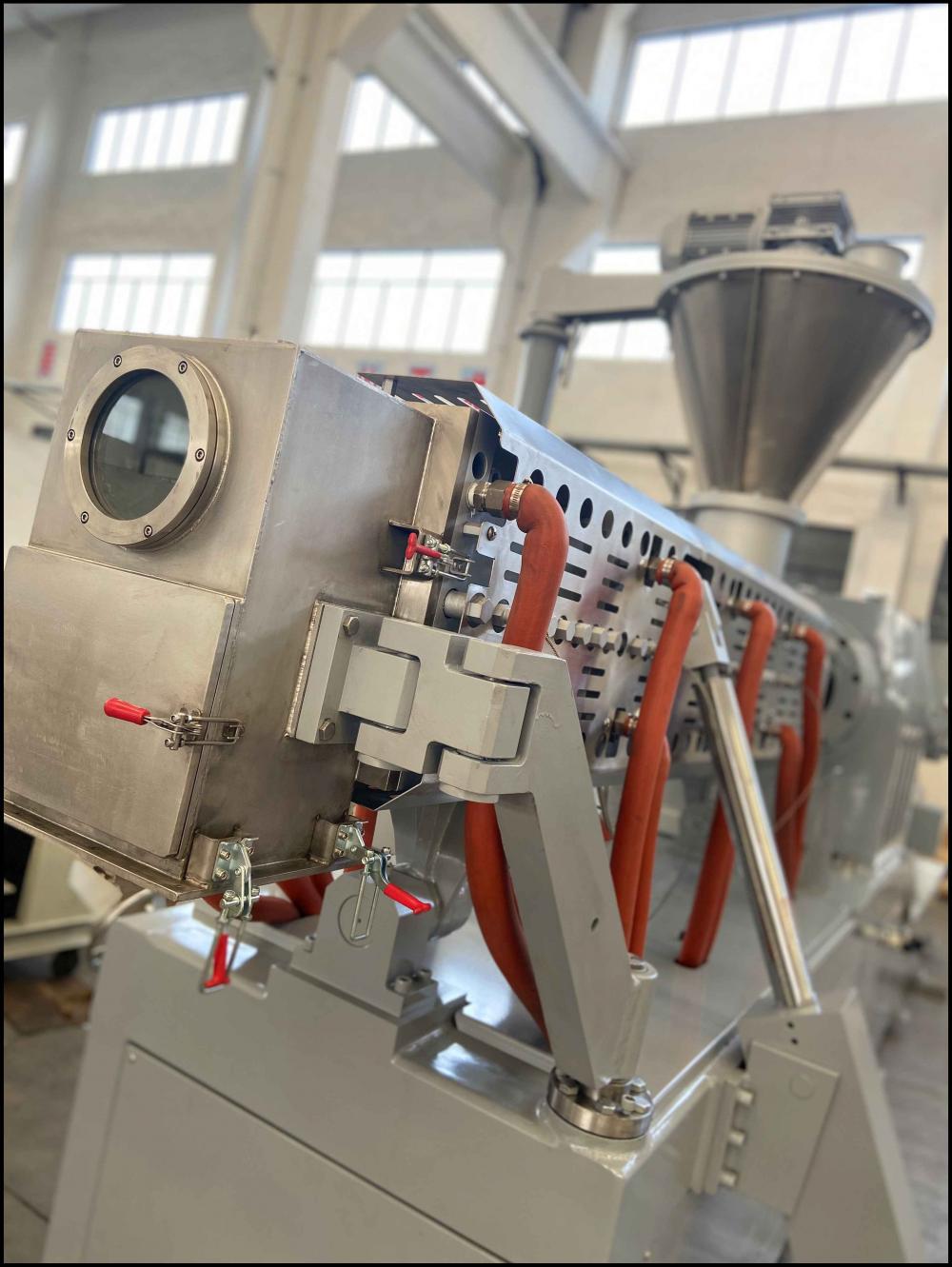

Rubber Extruder Machine

Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order:	1 Piece/Pieces

Contact Now

 Chat Now
Share to:

Basic Info

Model No.: SJW

Brand: XINDA

Origin: Jiangsu,China

Certification: ISO9001,CE,SGS

Processing Plastic Type: Hdpe, Hdpe/Pp, Pa, Pe/Pp, Lldpe, Polystyrene, Abs/Pp, Evoh, Wood-Plastic, Ppr, Pp, Frpp/Pvc, Pvc, Mlldpe, Ldpe, Abs, Pet, Eva, Pc, Polylactic Acid, Eps

Status: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump

Place Of Origin: China

Machine Type: Granulating Production Line

Screw Design: Single

Warranty Period: 1 Year

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Canada, Turkey, Italy, France, Peru, Saudi Arabia, Indonesia, Mexico, Thailand

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Egypt, Canada, Turkey, United States, Italy, Viet Nam, Brazil, Peru, Indonesia

Applicable Industry: Other

Raw Material: PP

Screw: Single-Screw

Inverter: Inverter

Electromagnetic Heater: Electromagnetic Heater

Automation: Automatic

Computerized: Computerized

Customized: Customized

Certification: SGS

Condition: New

Motor: Siemens Brand

Key Selling Points: Automatic

Output (kg/h):: 5-1800kg/h

Screw Type: Double Screw

Processing Type: Compouding/extruder/pelletizing

Used For: Pelletizing Granules

Voltage: 220V~340V

Motor Power: 200-250kw

Screw&barrel: Co-rotating,double Screw,clamshell

Application:: Color Masterbatch,Hot-melt Adhesive,ect

Additional Info

Packaging: Wood Box and Pallet

Productivity: 5-1800KG/H

Transportation: Ocean,Land,Air

Place of Origin: Jiangsu,China

Supply Ability: 1000

Certificate: ISO9001,CE,SGS

HS Code: 84772010

Port: SHANGHAI,QINGDAO,NINGBO

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union

Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP

Product Description

Extruder machine for rubber

Shading Compounds Kneading Compounding Extruder Line

The Shading Compounds Kneading Compounding Extruder Line of Co-kneader reciprocating kneader consists essentially of the following assemblies: gearbox, oscillating equipment, vertical feeder, side feeder, screw, barrel, temperature control system, lubricant system.

Pvc Compounding Line

Working Principle

Strength for Co-kneader

Lower energy input, lower melt temperatures
Extremely homogeneous mixing, no shear spikes, equal treatment of polymer matrix
High degree of self-wiping and have no dead spot
Dispersive mixing without destroying delicate fillers
High volumetric loadings of fillers and additives
Efficient blending of liquid components
Broad application for compounding without changing hardware
Axially opened split barrel guarantees ease of cleaning and fast maintenance
Replacement parts, such as screws, barrel lining and pins can be changed individually

Application for Product

PVC compounding pelletizing
Shoe sole compounds
Wire & cable compounds (XLPE, HFFR, Semi-conductive compounds, etc)
Concentrated color masterbatch
Rubber, Final-batch rubber, Master batch, Mixed compound
Elastomers
Bio-degradable compounds
Metal injection molding

Model Reference

(1) SJW(M) -- Melt pump is installed between the main extruder and the die. The benefits of melt pumps for extrusion operations include the elimination of surging and other fluctuations, reduction of inconsistent melt temperatures, high pressures at lower product temperatures, compensation for the pumping or mixing capacity of the extruder, possibly reduced start-up times, and reduction of energy required by the extruder.

Application:

Color masterbatch/ Concentrates
High loading filler masterbatch
Hot-melt adhesive
Engineering plastics compounding
Engineered elastomers

Model	SJW-45(M)	SJW-70(M)	SJW-100(M)	SJW-140(M)
Screw Diameter (MM)	45	70	100	140
Length Diameter Ratio	15-25	15-25	15-25	15-25
Main Motor Power (KW)	15-30	55-75	90-132	160-220
Max. Screw Speed (RPM)	500	500	500	500
Reference Output (KG/HOUR)	40-50	150-200	300-400	800-1000

(2) SJW(C) -- The cascade type of Co-Kneader compounding line is consisted of Co-Kneader main machine and another large size Single Screw Extruder. The stock will fall into the second stage single screw extruder after fully dispersed and distributed in Co-Kneader. It will ensure the materials are processed at lower temperature with the stable extruding. The whole process is divided into two parts. Co-Kneader is in charge of kneading while the second stage single screw is focusing on extruding. The cascade system is very helpful to achieve the better final quality.

Application:

PVC compounding pelletizing
Shoe sole compounds
Wire cable compounds (XLPE, HFFR, Semi-conductive compounds, etc)
Concentrated color masterbatch
Rubber, Final-batch rubber, Master batch, Mixed compound
Elastomers
Bio-degradable compounds
Metal injection molding

Model	SJW-45(C)	SJW-70(C)	SJW-100(C)	SJW-140(C)	SJW-200(C)
Screw Diameter (MM)	45	70	100	140	200
Length Diameter Ratio	20~25	20~25	20~25	20~25	20~25
Main Motor Power (KW)	15~30	55~75	90~132	160~300	350~550
Second-stage Screw Diameter (MM)	60	120	150	200	280
Second-stage L/D	7~8	7~8	7~8	7~8	7~8
Second-stage Power (KW)	15~22	37~45	55~75	90~110	132~160
Max. Screw Speed (RPM)	500	500	500	500	500
Reference Output (KG/HOUR)	40~70	150~250	300~500	800~1200	1900~3600

(3) SJW(T) -- With the special working principle and shorter L/D ratio of XINDA Co-Kneader enjoys wide application in the field of thermoset plastics compounds and powder coating. Thermocouples can be mounted in drilled kneading pins at various different points along the process section to get the direct contact with the melt. The combination of a liquid heating and cooling system and an extremely precise monitoring of the melt temperature makes Co-Kneader a very successful solution in thermoset plastics compounds and powder coating toner.

Application:

Thermoset plastics
Powder coating and toner
Bakelite molding compounds
Polymer: epoxy, acrylic, urethane, polyester, etc

Model	SJW-45(T)	SJW-70(T)	SJW-100(T)	SJW-140(T)	SJW-200(T)
Screw Diameter (MM)	45	70	100	140	200
Length Diameter Ratio	7-15	7-15	7-15	7-15	7-15
Main Motor Power (KW)	15-30	55-75	90-132	160-220	350-450
Max. Screw Speed (RPM)	500	500	500	500	500
Reference Output (KG/HOUR)	40-100	100-400	300-600	500-1000	1000-2000
