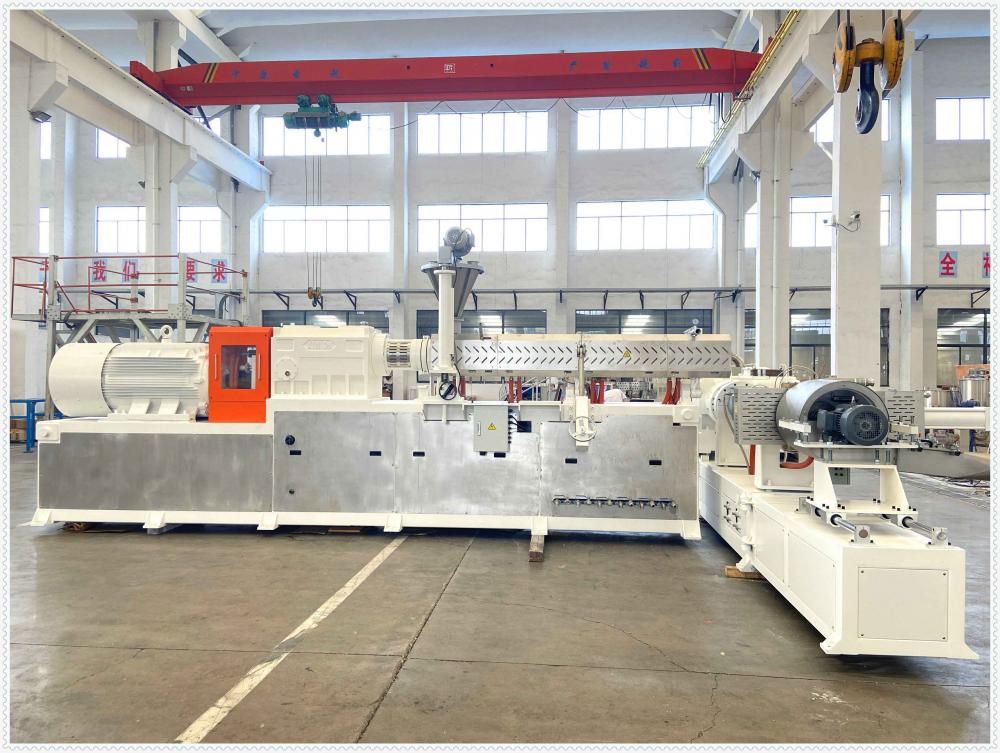

Low Smoke HFFR Cable Material Production Machine

Low smoke HFFR cable raw material making machine
 High Concentrated Color Masterbatch Compounding With Feeder System Based on 3-fight compounding design, XINDA develops latest new technology with 4 fights. The XINDASKW Kneader each spiralis broken by four gaps per revolution to locate the kneading fights. Four rows of kneading pins, which are individually inserted in the barrel per 90 degree, are intermeshed with these flights. With the same L/D ratio, it achieves more mixing, but less friction heat. The reciprocating wobble-box synchronizes the shaft rotation and oscillation so that each revolution of the screw is accompanied by one full stroke forward and backwards. This ensures optimal distributive and dispersive mixing with minimal energy consumption. Advantages of SKW ● Lower energy input, lower melt temperatures ● Extremely homogeneous mixing, no shear spikes, equal treatment of polymer matrix ● High degree of self-wiping and have no dead spot ● Dispersive mixing without destroying delicate fillers ● High volumetric loadings of fillers and additives ● Efficient blending of liquid components ● Broad application for compounding without changing hardware ● Axially opened split barrel guarantees ease of cleaning and fast maintenance ● Replacement parts, such as screws, barrel lining and pins can be changed individually Color Masterbatch Granulation Newest Co-Kneader Forming Masterbatch Extruder Co-Kneader Bio-Degradable Compounds Application for Product  Cable Compounds:                                                                Masterbatches: 〉HFFR                                                                                     〉High concentrated color MB 〉XLPE                                                                                     〉Black and white MB 〉 Semi-conductive insulating                                               〉High loaded filler MB Cable Raw Materials 〉Black sheathing                                                                   〉PET/PP/PA fiber MB                                                                                                〉Metal injection molding                                                                                                〉PET/PP/PA fiber MB                                                                                                〉PET/PP/PA fiber MB Model Reference SKW Serial Four-flight Co-kneader Model  SKW-85  SKW-105  SKW-125 Co-kneader Screw Diameter  85  105  125 L/D Ratio  15-22  15-22  15-22 Max. Screw Speed  600 600 600 Main Motor Power 110-160 200-280 350-450 Second-stage Screw Diameter 150 180 220 Second-stage Screw L/D Ratio  7  7  7 Max. Screw Speed  60 60 60 Second-stage Motor Power 55 75 110 Reference Output  SKW-85  SKW-105  SKW-125 HFFR Cable Compounds 200-400 500-800 800-1500 Black sheathing 200-400 500-800 800-1500 Semi-conductive Insulating Compounds 200-400 500-800 800-1500 Silane XLPE Cable Compounds 200-400 500-800 800-1500 High Concentrated Color MB 150-350 400-700 700-1200 Carbon Black MB 150-350 400-700 700-1200 High Loaded Filler MB 200-400 600-1000 900-1600 About factory History Certification Customers list
