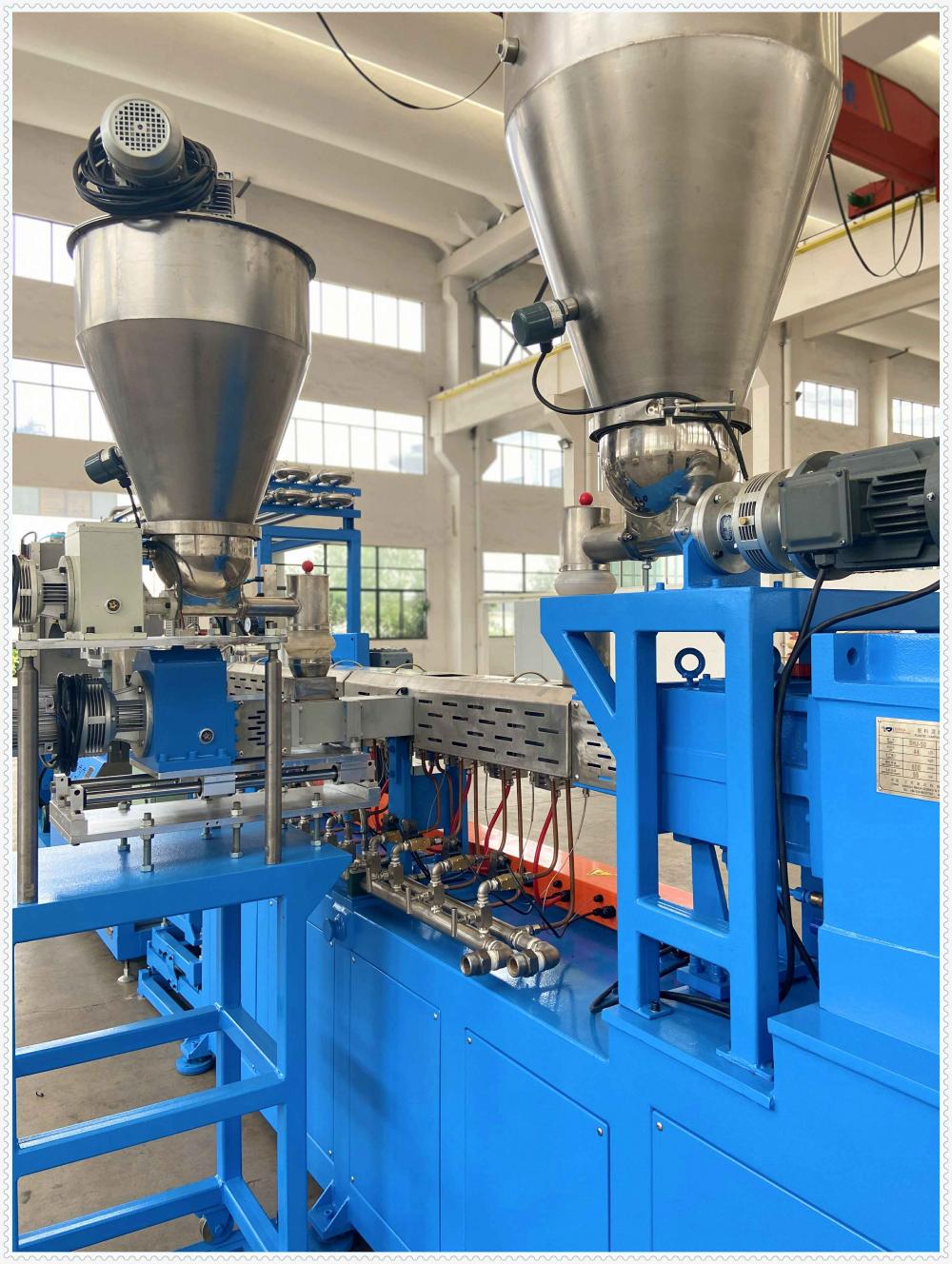

Single Screw Co-kneader For Hot Melt Adhesive

Four-flight Compounding System (SKW type)

Based on the 3-flight compounding design, XINDA has developed the latest new technology with 4 flights. Each revolution of the XINDA SKW Kneader breaks the spiral into four gaps to locate the kneading flights. Four rows of kneading pins, which are individually inserted in the barrel per 90 degrees, are intermeshed with these flights. With the same L/D ratio, it achieves more mixing but less friction heat. The reciprocating wobble-box synchronizes the shaft rotation and oscillation, ensuring that each revolution of the screw is accompanied by one full stroke forward and backward. This ensures optimal distributive and dispersive mixing with minimal energy consumption.

Working Principle

Strengths of Co-Kneader

• Lower energy input, lower melt temperatures
• Extremely homogeneous mixing, no shear spikes, equal treatment of polymer matrix
• High degree of self-wiping and no dead spots
• Dispersive mixing without destroying delicate fillers
• High volumetric loadings of fillers and additives
• Efficient blending of liquid components
• Broad application for compounding without changing hardware
• Axially opened split barrel guarantees ease of cleaning and fast maintenance
• Replacement parts, such as screws, barrel lining, and pins, can be changed individually

Features of SKW Co-Kneader

High speed, bigger capacity, better mixing, lower energy consumption

Applications for Products

Cable Compounds:

• HFFR
• XLPE
• Semi-conductive insulating
• Black sheathing

Masterbatches:

• High concentrated color MB
• Black and white MB
• High loaded filler MB
• PET/PP/PA fiber MB
• Metal injection molding

Model Reference

Model SKW-85

• Screw Diameter: 85 mm
• Length Diameter Ratio: 15-22
• Max. Screw Speed: 600 rpm
• Main Motor Power: 110-160 kW
• Second-stage Screw Diameter: 150 mm
• Second-stage L/D: 7
• Max. Second-stage Screw Speed: 60 rpm
• Second-stage Motor Power: 50 kW

Model SKW-105

• Screw Diameter: 105 mm
• Length Diameter Ratio: 15-22
• Max. Screw Speed: 600 rpm
• Main Motor Power: 200-280 kW
• Second-stage Screw Diameter: 180 mm
• Second-stage L/D: 7
• Max. Second-stage Screw Speed: 60 rpm
• Second-stage Motor Power: 75 kW

Model SKW-125

• Screw Diameter: 125 mm
• Length Diameter Ratio: 15-22
• Max. Screw Speed: 600 rpm
• Main Motor Power: 350-450 kW
• Second-stage Screw Diameter: 220 mm
• Second-stage L/D: 7
• Max. Second-stage Screw Speed: 60 rpm
• Second-stage Motor Power: 110 kW

Reference Output (KG/H)
