Home > Products > Co Rotating Twin Screw Extruder > Clamshell Twin Screw Extruder > Compounding Twin Screw Extruder for Laboratory Equipment

View the big picture

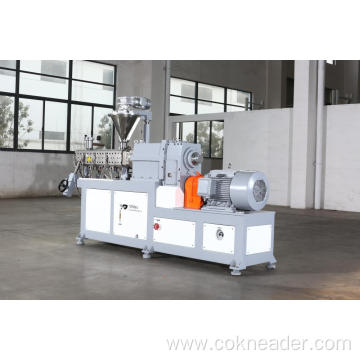

Compounding Twin Screw Extruder for Laboratory Equipment

Payment Type:	L/C,T/T,D/P,Western Union
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces

Contact Now

 Chat Now
Share to:

Basic Info

Model No.: PSHJ

Brand: XINDA

Origin: CHINA

Certification: ISO90001,IQNET

Raw Material: PP

Screw: Double-Screw

Inverter: Inverter

Electromagnetic Heater: Electromagnetic Heater

Automation: Automatic

Computerized: Computerized

Customized: Customized

Certification: GMP

Condition: New

Additional Info

Packaging: Wood box or pallets

Productivity: 1500KG/H

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 50pcs per month

Certificate: ISO90001,IQNET

HS Code: 84772010

Port: SHANGHAI,SHANGHAI,SHANGHAI

Payment Type: L/C,T/T,D/P,Western Union

Incoterm: FOB,CIF,EXW

Product Description

Compounding Twin Screw Extruder For Lab Machine

PSHJ Clamshell Barrel Co-rotating Twin Screw Extruder

The barrel can be opened in minutes. This makes product changeover, maintenance and research fast and easy. Both screws and barrels are designed using the building block principle. The screw configuration, barrel setup, feeding and venting, screen changing, way of pelletizing and process requirements, in consideration of the machine's versatility in other general applications.

Application:

Various plastic inorganic filler, polymer blending (plastic alloy), plastic coloring, etc.
Various engineering plastic reinforcement of glass fiber, flame-retardant pellets
Various antibacterial, insulated, toughening materials for specific uses
Light/biology degradable film materials, amylum degradable plastics and multi-functional anti-fog film materials, etc.
Specific material for automobiles and household appliances and cable materials, etc.
Thermoplastic elastomers, such as TPR, TPE, and SBS, etc.
Regenerate pellets for PVC airproof pieces, thermo-soluble glue, etc.

Model Specifications:

Model	PSHJ-20	PSHJ-35	PSHJ-50	PSHJ-65	PSHJ-75	PSHJ-127
Screw Diameter (MM)	21.7	35.6	50.5	62.4	71	126
Central Distance	18	30	42	52	60	102
Length Diameter Ratio	28-52					28-52
Main Motor Power	4-5.5	22-45	75-110	110-185	160-280	90-160
Max. Screw Speed (RPM)	600
Output Torque per Shaft (N.m)	32-43	175-358	597-875	875-1472	1273-2228	850-1528
Reference Output (KG/HOUR)	5-20	20-80	80-200	150-350	300-600	800-1500

C-PSHJ Model Specifications:

Model	C-PSHJ-35	C-PSHJ-50	C-PSHJ-65	C-PSHJ-75	C-PSHJ-127
Screw Diameter (MM)	35.6	50.5	62.4	71	126
Central Distance	30	42	52	60	102
Length Diameter Ratio	28-52				13-18
Main Motor Power	22-45	75-132	110-250	160-355	90-160
Max. Screw Speed (RPM)	800				500
Output Torque per Shaft (N.m)	131-269	448-788	657-1492	955-2119	850-1528
Reference Output (KG/HOUR)	150-300	200-500	400-800	500-1000	800-1500

Product Description:
